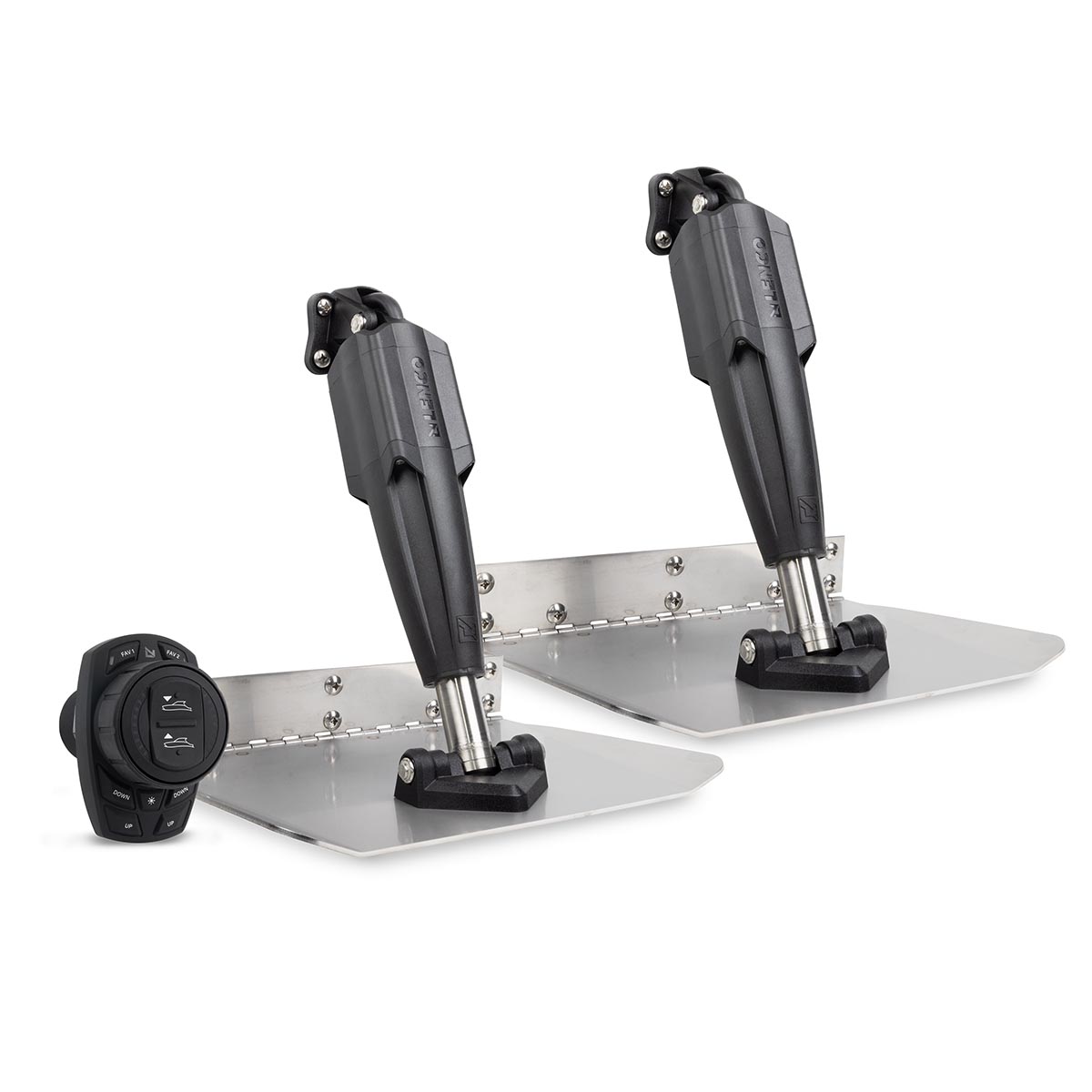

Lenco Pro Control Assist Trim Tab Kits – 12-Gauge Blades / 12-Volt SD Pro Actuators
$4,109.00 – $4,309.00
Brand:
Manual control is in your hands. The Pro Control Assist system offers a manual control option, featuring a smart, sleek dial controller, designed to provide a class-leading user interface. Get all the benefits of Pro Control including holeshot assist, with NMEA 2000® connectivity and the ability to store preferred positions for your trim tabs.
Features
• Pro Control Assist Keypad
• 2x 12-gauge 304 grade (2.7 mm) stainless steel plates (available in either Standard or Electropolished versions)
• 2x 2.25″ Stroke SD Pro Actuators, 11.5″ pin to pin
• 5x Micro C Tee Connector
• Micro C Power Cable with fuse and ground
• 2x 6′ Micro C Drop cables, 1x 25′ Micro C Drop cable
• 2x 6 Pin Deutsch to Micro C Actuator Network Adapter Cable
• 2x 3′ (.91 m) Pro Control Actuator Power Pigtail
• 2x Wake Signal Adapter for Non-Mercury Systems
• 2x Corrosion proof Upper Mounting Brackets with gland seal
• 2x Corrosion proof Lower Mounting Brackets
• Lenco 2K Backbone Kit
• 5 Year warranty
Note
• Standard Blade Trim Tabs – The original Trim Tab design, ideal for centre console fishing boats to cuddy cabin cruisers.
• Edge Mount Blade Trim Tabs – Designed for boat applications where a lower actuator mounting height is desirable. Actuator mounts at the trailing edge of the blade giving it a 3″ (7.6 cm) lower mounting height on 12″ (30.5 cm) long blades. All edges are turned up for added strength and style.
| BLA CODE | BLADE SIZE L X W IN | BLADE STYLE | MIN TRANSOM HEIGHT CM | PLATE FINISH | ACTUATOR SIZE PIN TO PIN IN | RECOMMENDED BOAT LENGTH M |
|---|---|---|---|---|---|---|
| 312900 | 9 x 12 | Standard | 35.6 | Standard | 11.5 | 4.8-7.6 |
| 312901 | 9 x 12 | Standard | 35.6 | Electropolished | 11.5 | 4.8-7.6 |
| 312902 | 12 x 12 | Standard | 35.6 | Standard | 11.5 | 6.7-9.1 |
| 312903 | 12 x 12 | Standard | 35.6 | Electropolished | 11.5 | 6.7-9.1 |
| 312910 | 12 x 12 | Edge Mount | 27.9 | Standard | 11.5 | 4.8-7.6 |
| 312911 | 12 x 12 | Edge Mount | 27.9 | Electropolished | 11.5 | 4.8-7.6 |
| BLA CODE | WEIGHT (GRAMS) | Package Dimensions L x W x H cm |
| 312900 | 7257 | 34 x 32 x 18 |
| 312901 | 7257 | 34 x 32 x 18 |
| 312902 | 8165 | 34 x 32 x 18 |
| 312903 | 8165 | 34 x 32 x 18 |
| 312910 | 8255 | 34 x 32 x 18 |
| 312911 | 8255 | 34 x 32 x 18 |
